As well as being a key component of Russia’s attack helicopter force in the war in Ukraine, the Mi-28 Havoc has been in the news recently on account of its apparent delivery to Iran. Meanwhile, one lesser-known aspect of the Mi-28 is its ability to transport two or three passengers in a cramped fuselage compartment, a feature that is seen clearly in a recently published video of the rotorcraft.
The footage in question originates with the state-owned Russia Television and Radio channel and shows a Russian Aerospace Forces Mi-28NM — the latest domestic version of the gunship — undergoing pre-flight checks at a forward airstrip somewhere in the Ukrainian conflict zone. The video reportedly dates from this month.

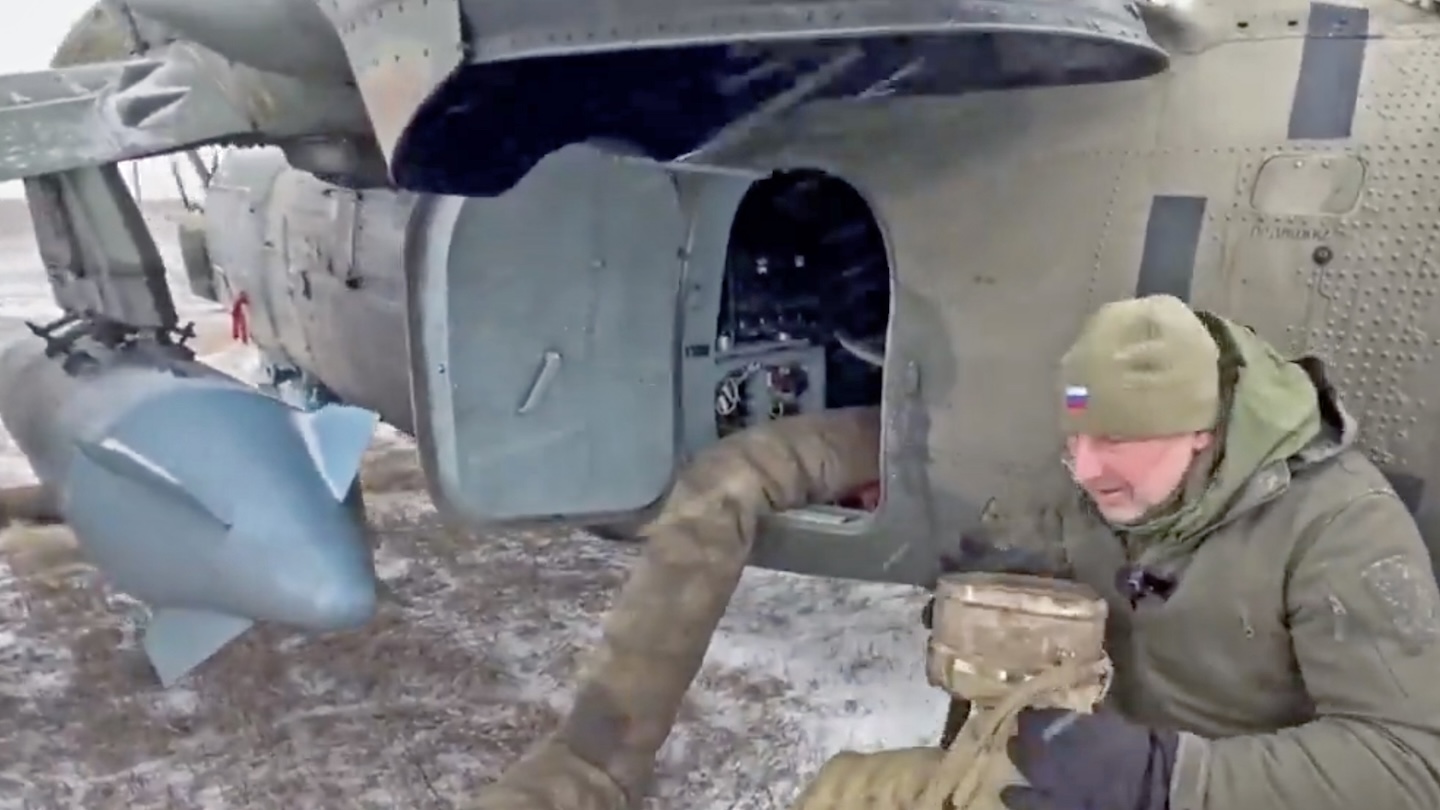

At the start of the video, a technician is seen handling hoses that run into the helicopter’s port-side rear fuselage via an open door. Typically, such hoses are attached to dehumidifier units, which then blow warm, dry air through the aircraft to keep everything dry. This is especially important for sensitive avionics in cold weather, as on this snowy airfield. Once the helicopter is fully powered up, it should keep itself warm enough for moisture not to be a problem.

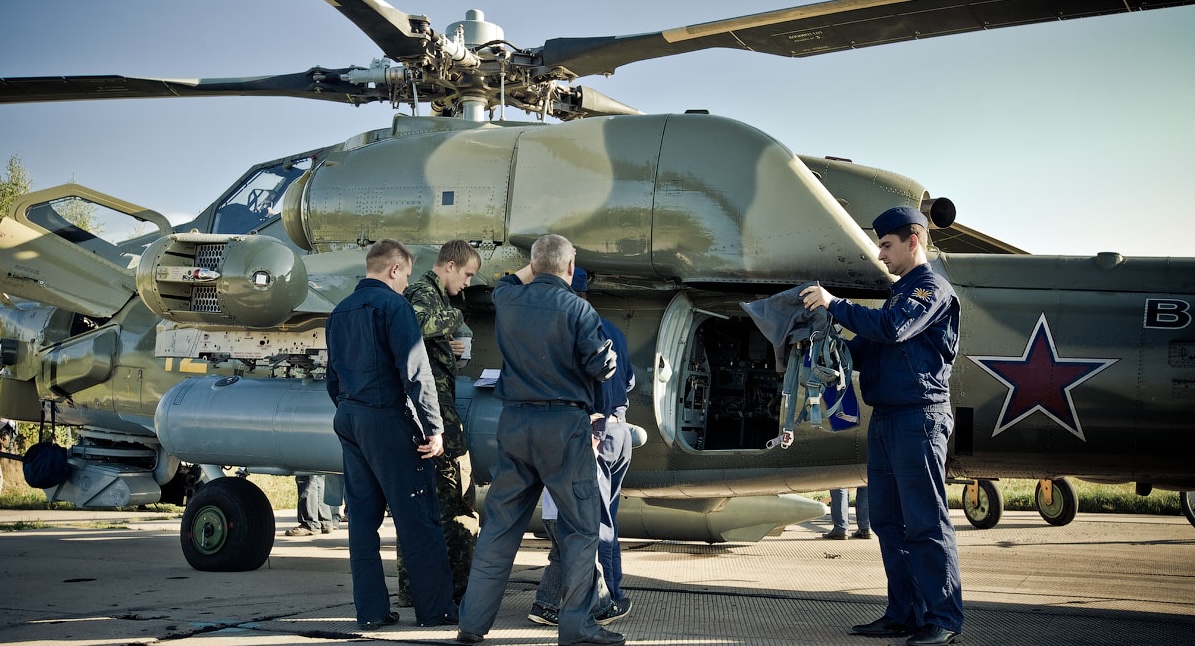

What’s most interesting, however, is that the open door provides a rare look into this rear-fuselage compartment, which has the capacity to carry two or three people, or an equivalent load of cargo. Of course, this is in addition to the Mi-28’s two crew seated in tandem in the cockpit — the weapon system operator/navigator forward and the pilot to the rear.
The fuselage compartment, unique among in-service attack helicopters, was part of the Mi-28’s design when it was first schemed back in the second half of the 1970s. The Soviet Union had ordered Mil to design a new-generation combat helicopter, equivalent to the U.S. AH-64 Apache, but this feature was all its own.
The Mi-28’s configuration was broadly similar to the AH-64, but marked a significant move away from the philosophy enshrined in the previous Mi-24 Hind. As we have discussed in the past, the Mi-24 had been built around a passenger/cargo cabin — with space for a squad of infantry — although, as it was developed, it expanded its anti-armor capabilities, too.
A walkaround video of a privately owned Mi-24 in the United States. The passenger/cargo cabin is seen in detail from around the 11:30 mark:
In contrast, the Mi-28 was a tank-killer first and foremost, with no cabin, and better overall performance. However, there was internal space for a much smaller compartment and one that would be very useful for retrieving downed pilots from the battle area, especially for grabbing a pilot who went down within the same flight. Bearing in mind the expected aircraft losses on Europe’s Central Front — especially among low-flying helicopters — this made a lot of sense.
Other tasks could have included moving mechanics and tools to conduct limited repairs of other helicopters in an emergency. Potentially, it could even have been used for inserting and picking up infiltrators or saboteurs.
Having the option of using the Mi-28 as a kind of ad-hoc, or non-traditional combat search and rescue (CSAR) asset would also mean that the aircraft could operate on its own and on the fly if other air or ground assets were not available. Traditionally, CSAR helicopters have to operate with an armed escort. It’s unknown whether the passenger cabin has been used at all in the war in Ukraine, but the limited space, presence of avionics equipment, and complete lack of windows mean it’s only really suited to emergencies. For more typical CSAR missions in the Ukrainian theater, Mi-8 Hips and Mi-24s are typically used, with an escort of Mi-28 or Ka-52 Hokum attack helicopters.
As for other attack helicopter types attempting personnel recovery, the best-known incident is likely that involving two British Army Apache gunships in Afghanistan in January 2007. During that dramatic mission, four Royal Marines strapped themselves to the outside of two Apaches for an attempted combat rescue. Ultimately, they were only able to recover the body of their fallen comrade, Lance Cpl. Ford, who had already been killed.

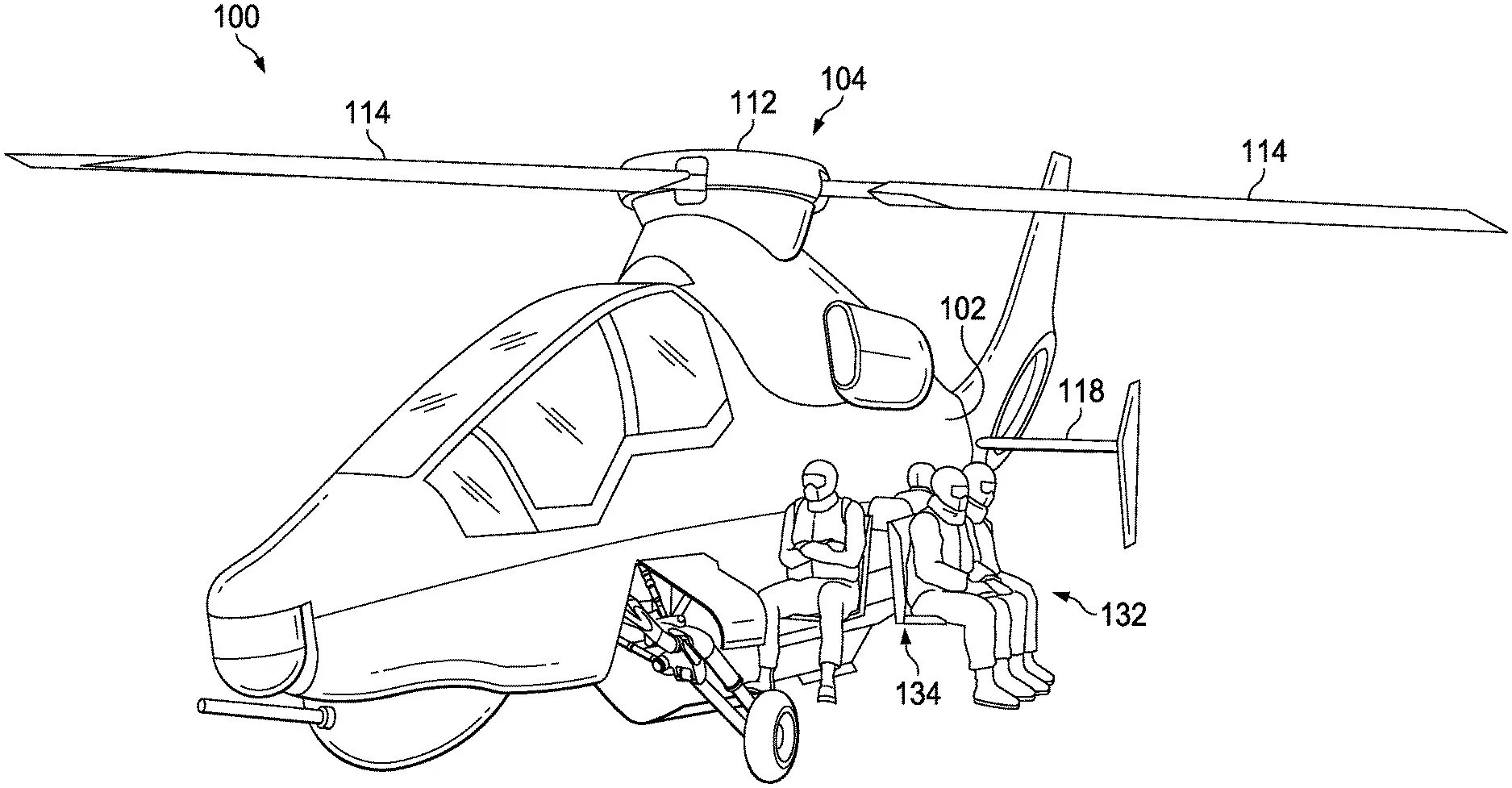

The Italian Army, too, has explored the concept of using its A129 Mangusta attack helicopters for personnel rescue, strapping a pair of soldiers to the main landing gear struts. Meanwhile, the U.S. Army Special Operations Command operates MH-6M Little Birds with side-mounted planks to externally airlift special operators. A more elaborate modular system, used to transport small numbers of personnel, was schemed for the Bell 360 Invictus armed scout helicopter, as you can read about here.
It’s also worth pointing out another planned ‘survival’ feature of the Mi-28, namely its crew-escape system. Unlike the Ka-52, the Mi-28 doesn’t have ejection seats. Instead, the Zvezda/Tomilino Pamir-K crew seats have belts that tighten automatically when high-g loads are encountered. As originally envisaged, the crew escape system would work as follows: During any kind of catastrophic failure at altitude, the cockpit doors would be blown off, the stub wings would be jettisoned together with their loads, and an inflatable door-sill sleeve would be filled with air. This was to protect the crew from the protruding main landing gear and cannon and help them clear the helicopter, after which they would return to the ground by parachute. In theory, at least.
In practice, it seems the crew escape system never reached operational status on the Mi-28, likely due to the very limited window in which it would be of practical use.
According to the Oryx open-source tracking group, Russia has lost 19 Mi-28s since launching its full-scale invasion of Ukraine four years ago. This figure could be higher because Oryx only tabulates losses it can confirm visually. Russia began the conflict with a force of around 110 Mi-28s of all versions.
The Mi-28 has had a notably protracted history since it was first flown in prototype form in 1982. The original Havoc was abandoned by the early 1990s, and Mil pressed ahead with the radar-equipped, night-capable Mi-28N version. Deliveries of production Mi-28N helicopters to Russia began in 2008, and export versions have since been sold to Algeria, Iraq, Uganda, and, apparently, now also Iran.
For Russia, the basic version remains the Mi-28N, which also undertook combat operations in Syria starting in 2016.
Less common is the Mi-28UB (only 24 of which were produced), which received a mast-mounted radar, lacking on the Mi-28N, and dual controls. As for the latest Mi-28NM version — as seen in the video above — this also has the mast-mounted radar and other changes, including new missiles. As well as having been ordered in quantity for Russia, there are also plans to bring older Mi-28N aircraft up to Mi-28NM standard.
Video of the radar-equipped Mi-28UB during a live-fire exercise in the Krasnodar region, March 2020:
For all the changes that the Mi-28 has undergone since it first appeared, its highly compact passenger compartment remains one of its most unusual features.
