F-35 Will Get New Radar Under Massive Upgrade Initiative (Updated)

Share

After a mysterious radar designation emerged online in news stories about the F-35 Lightning II program, the internet quickly began debating whether it was a typo or a new capability altogether. Now, The War Zone has official confirmation that the fifth-generation stealth fighter will, in fact, be getting a new radar designated as the AN/APG-85.

One of the first mentions of the AN/APG-85 appeared in a Defense News article published in April of last year. Reporter Stephen Losey noted that $921 million had been added to the U.S. Air Force’s wishlist for Fiscal Year 2023 (FY2023) to procure seven more “Block 4 F-35As with the APG-85 radar from Lot 17.” Then, in a separate article authored last December, Losey wrote of the radar again in the same context. The references were later highlighted and questioned by the @MIL_STD Twitter account.

Post Unavailable

The War Zone reached out to both the F-35 Joint Program Office (JPO) and Lockheed Martin, for any information about this puzzling new designation. While we’re still waiting to hear back from Lockheed Martin, the JPO did respond and offered what they could without revealing classified details.

“The U.S. Air Force, Navy, and Marine Corps are jointly developing and integrating an advanced radar for the F-35 Lightning II, which is capable of defeating current and projected adversarial air and surface threats,” said the F-35 JPO. “This advanced radar will be compatible with all variants of the F-35 aircraft.”

To clarify whether this meant that all F-35 A/B/C variants from all blocks would be compatible with the new radar, or if only Block 4 A/B/C variants would be, The War Zone followed up with the JPO. Their response explained that the AN/APG-85 is currently slated to be installed only on all Block 4 A/B/C jets. This would also line up with Air Force FY2023 unfunded priority list presentation slides, cited by @MIL_STD on Twitter as well, that make note of the radar along with the same aforementioned Block 4 F-35 procurement effort.

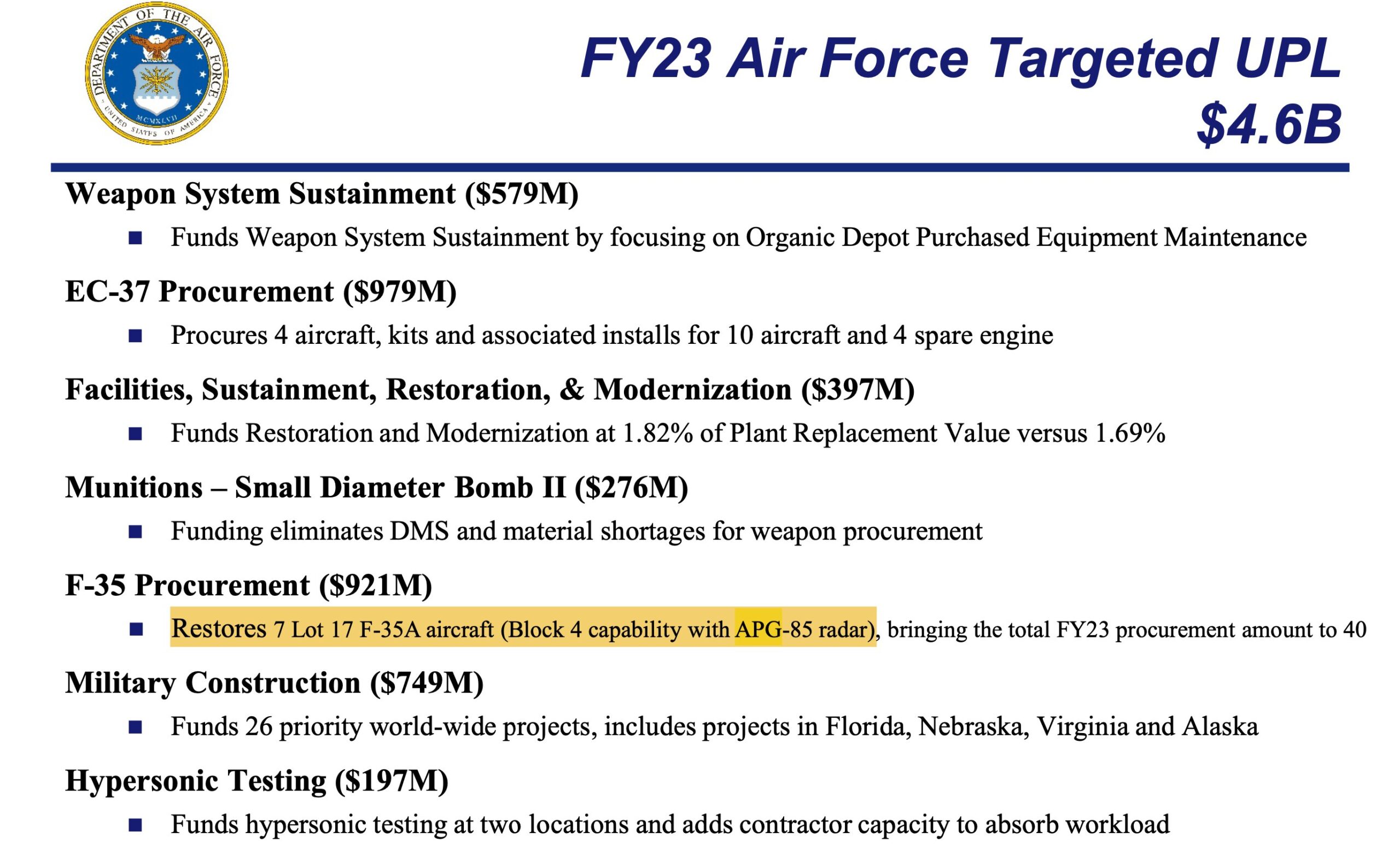

The unfunded priority list slide taken from an Air Force budget presentation that was also included in one of @MIL_STD’s tweets. Credit: U.S. Air Force

The JPO’s response went on to add that “details on modification plans for earlier lot aircraft are not available at this time,” meaning whether or not it’s possible for pre-Block 4 F-35s to be modified with the new radar is unclear at this time. Other details, like who will be making the AN/APG-85, have also yet to be disclosed.

The F-35’s existing AN/APG-81 is produced by Northrop Grumman, and the company was awarded the contract to build it in 2001. AN/APG-81 is a solid-state active electronically scanned array (AESA) that succeeded the F-22’s AN/APG-77, and according to the Northrop Grumman site, “over 3,000 AN/APG-81 AESA radars are expected to be ordered for the F-35, with production to run beyond 2035 including large quantities of international orders.”

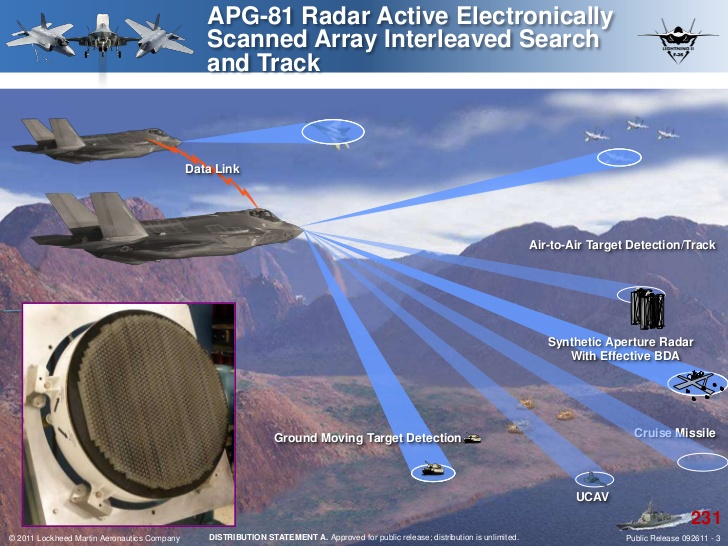

A Lockheed Martin slide detailing the performance of the F-35’s current radar, the AN/APG-81. Credit: Lockheed Martin
A Lockheed Martin slide detailing the performance of the F-35’s current radar, the AN/APG-81. Credit: Lockheed Martin

Along with what we now know to be its new AN/APG-85 radar, all three F-35 A/B/C variants will be undergoing a massive modernization effort over the next few years. Known as Block 4 upgrades, some of these improvements remain classified but others are at the very least known to include a major upgrade to the jet’s Distributed Aperture System (DAS) and Electro-Optical Targeting System (EOTS), the integration of a host of new weapons like the GBU-53/B StormBreaker precision-guided bomb, and major enhancements to the aircraft’s electronic warfare suite. These are just some of the updates that are known about, as tweaks to the airframe and stealth coatings are also possible.

On top of that, before all of these changes can be made, the F-35’s core processor, memory unit, and panoramic cockpit display system must be revamped. The Defense Department is calling this effort Technology Refresh 3 (TR-3), and it essentially seeks to upgrade the jet’s current computing system, TR-2, with one more capable of handling all of the new hardware and software that will be integrated under Block 4.

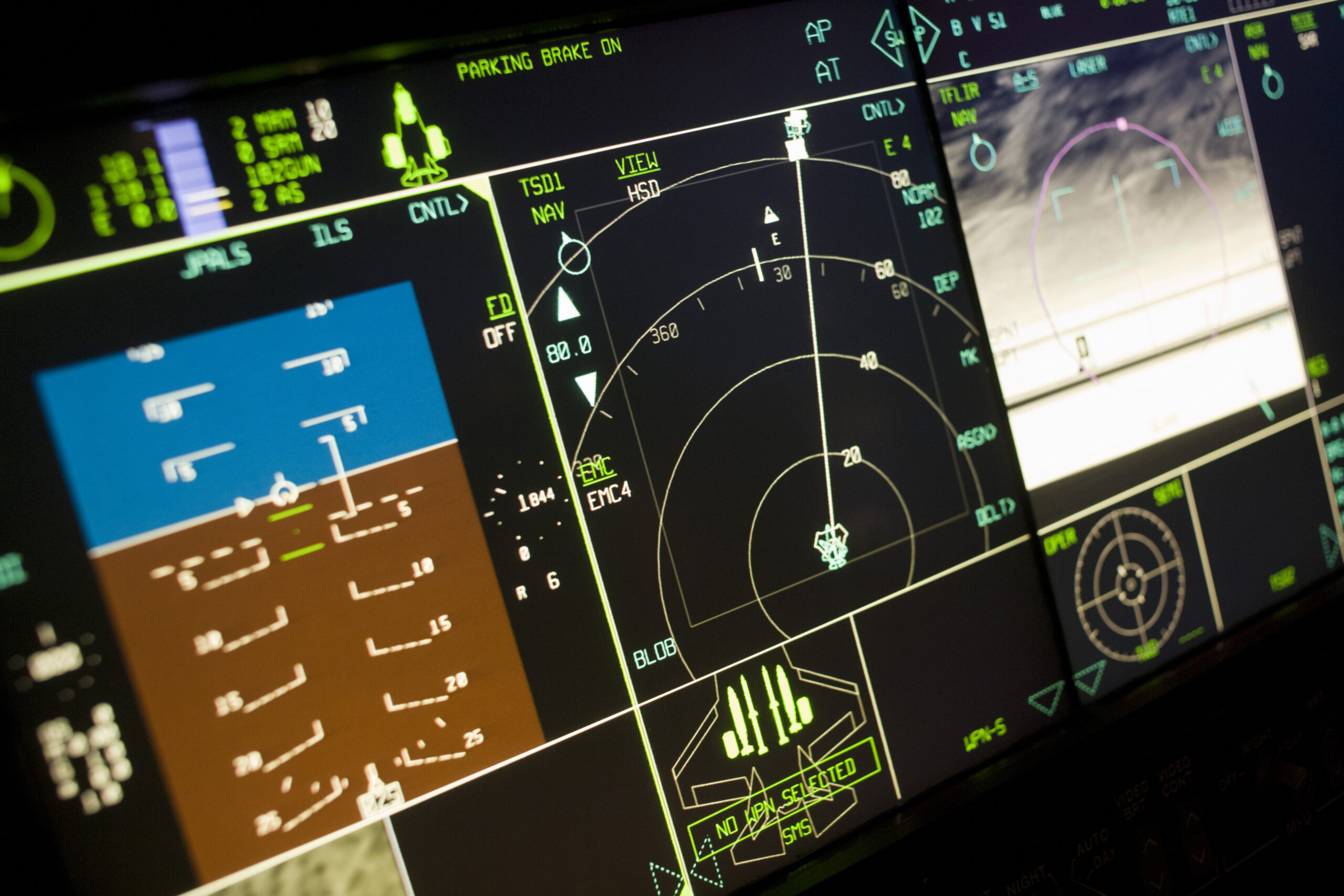

Glowing cockpit instrumentation of a Lockheed Martin F-35 Lightning II stealth fighter. Credit: Photo by In Pictures Ltd./Corbis via Getty Images

In all, Block 4 will introduce dozens of new upgrades for the F-35 that combine to make a far more capable and sustainable aircraft than what is flying today, and now we know the AN/APG-85 will be a critical component of this evolution, too.

Lockheed Martin and the Defense Department actually just finalized a massive deal worth $30 billion to begin delivering upgraded F-35s. Under the contract, Lockheed Martin will be manufacturing up to 389 modernized fighter jets for the U.S. military and international customers consisting of 145 Lot 15 F-35s and 127 Lot 16 jets with the option for 126 Lot 17s to be delivered to Finland, Belgium, and Poland. According to Lockheed Martin, the aircraft from all three batches will come equipped with the TR-3 hardware upgrade, but the full Block 4 package (for lack of a better term) won’t hit until Lot 17, or at least that’s the goal.

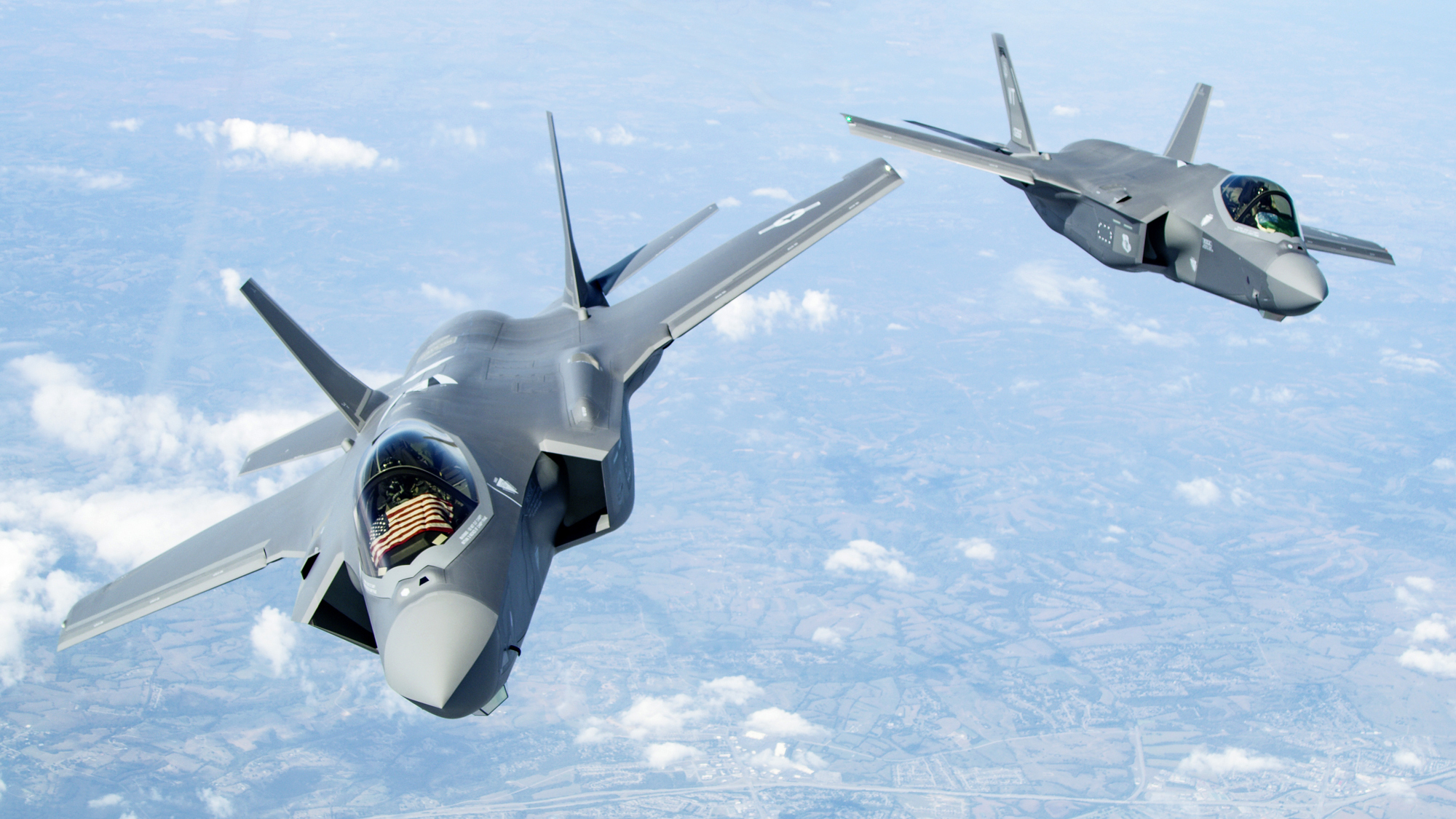

Two F-35 Lightning IIs bank after receiving fuel over the Midwest Sept. 19, 2019. Credit: U.S. Air Force photo/Master Sgt. Ben Mota

As for what the AN/APG-85 will bring to the table over its predecessor, we just don’t know. But there have been significant advances in AESA technology since the F-35 was designed. A Gallium Nitride (GaN)-based system is very likely to be a major facet of this improvement, which could drastically increase the F-35’s radar range and resolution. The radar’s ability to support more dynamic electronic warfare tactics would probably also be a key factor. Beyond these glaring probabilities, we can only imagine that a radar enhancement that demanded a new designation will have some pretty incredible tricks up its sleeve.

As it stands, the AN/APG-85 is just one of the many moving parts that make up the ongoing F-35 facelift, and it will be interesting to see how it integrates with the fleet now that we know the capability is real. It will be some time until then, as it seems the radar will be rolled out on the same timeline as Block 4, which is currently slated to wrap in 2029 after multiple delays, but The War Zone will certainly be keeping an eye out for developments in the meantime.

Update Jan. 11, 12:43 p.m. EST —

Northrop Grumman has officially announced that the company will be developing the new AN/APG-85 AESA radar for the F-35 Lightning II. As mentioned in this article, Northrop Grumman already makes the stealth jet’s current radar, the AN/APG-81.

“The AN/APG-85 is an advanced multifunction sensor that will be compatible with all variants of the F-35 aircraft and will be capable of defeating current and projected adversarial air and surface threats,” read the Northrop Grumman press release published Jan. 11. “The development and integration of APG-85 will incorporate some of the latest technologies available and help ensure air superiority. This advanced sensor will provide unparalleled battlespace situational awareness that translates into platform lethality, effectiveness, and survivability.”

Northrop Grumman told The War Zone that additional information beyond what has been included in the release will not be disseminated at this time.
