DARPA’s New X-Plane Aims To Maneuver With Nothing But Bursts Of Air

Share

The Defense Advanced Research Projects Agency has moved into the next phase of its Control of Revolutionary Aircraft with Novel Effectors program, or CRANE. The project is centered on an experimental uncrewed aircraft, which Aurora Flight Sciences is developing, that does not have traditional moving surfaces to control the aircraft in flight.

Aurora Flight Sciences’ CRANE design, which does not yet have an official X-plane designation or nickname, instead uses an active flow control (AFC) system to maneuver the aircraft using bursts of highly pressurized air. This technology could eventually find its way onto other military and civilian designs. It could have particularly significant implications when applied to future stealth aircraft.

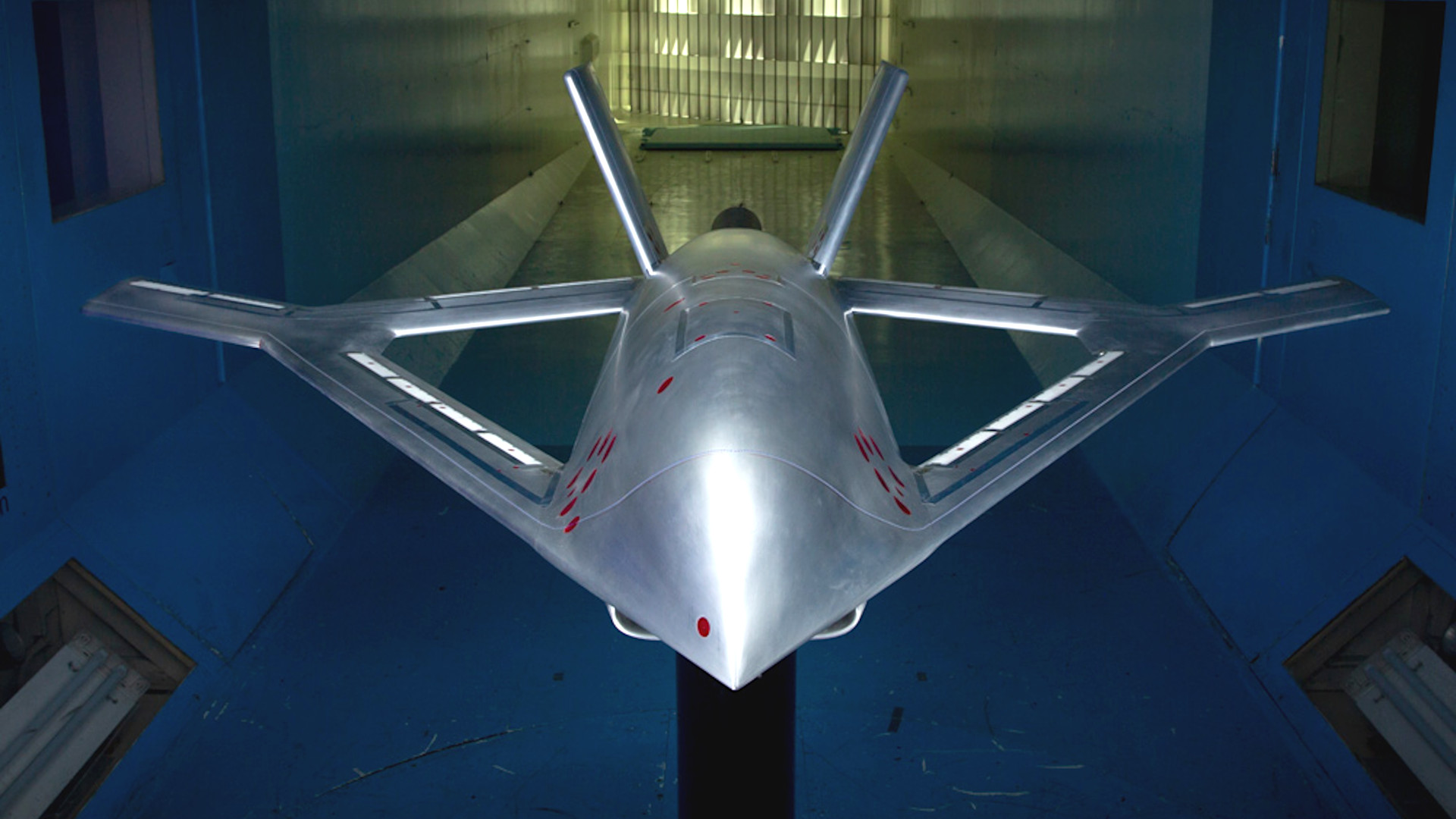

A subscale wind tunnel model of Aurora Flight Sciences’ CRANE X-plane design. Aurora Flight Sciences

The Defense Advanced Research Projects Agency (DARPA) issued a press release regarding the last developments in the CRANE program yesterday. Aurora Flight Sciences, a subsidiary of Boeing, announced it had received a Phase 2 contract to continue work on this project back on December 12, 2022.

“Phase 2 will focus on detailed design and development of flight software and controls, culminating in a critical design review of an X-plane demonstrator that can fly without traditional moving flight controls on the exterior of the wings and tail,” according to DARPA. “The contract includes a Phase 3 option in which DARPA intends to fly a 7,000-pound X-plane that addresses the two primary technical hurdles of incorporation of AFC into a full-scale aircraft and reliance on it for controlled flight.”

Aurora was among four companies hired to conduct initial CRANE-related design studies in 2020 and 2021 as part of the program’s Phase 0. The company explored multiple designs, including tilt-rotor types inspired by the Bell/Boeing V-22 Osprey and another vertical takeoff and landing capable aircraft with lift fans built into its wings. A modified version of Boeing’s X-48C blended wing body demonstrator was also considered, among others.

A briefing slide showing various Aurora Flight Sciences design concepts and other physical and digital modeling done as part of the CRANE program’s Phase 0. DARPA

The design that Aurora ultimately settled on was more along the lines of a conventional plane. However, it has a so-called Co-Planar Joined Wing (CJW) planform consisting of two sets of wings attached to a single center fuselage that merge together at the tips, along with a twin vertical tail arrangement. As currently designed, the drone will use “banks” of nozzles installed at various points on the wings to maneuver in the air.

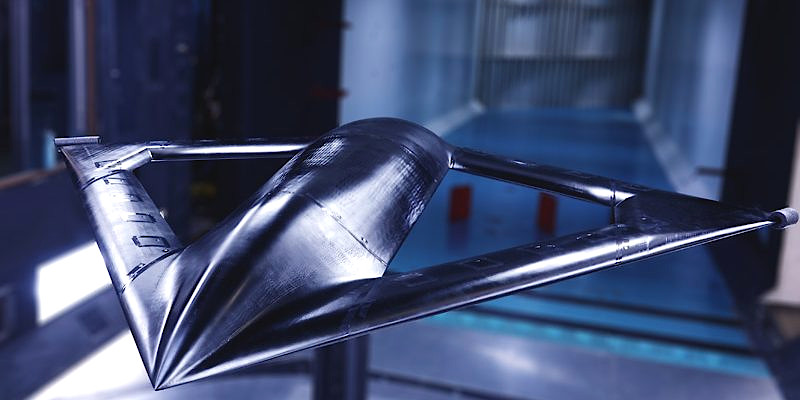

A wind tunnel model of one of Aurora Flight Sciences’ initial CRANE concepts with a joined wing. Aurora Flight Sciences

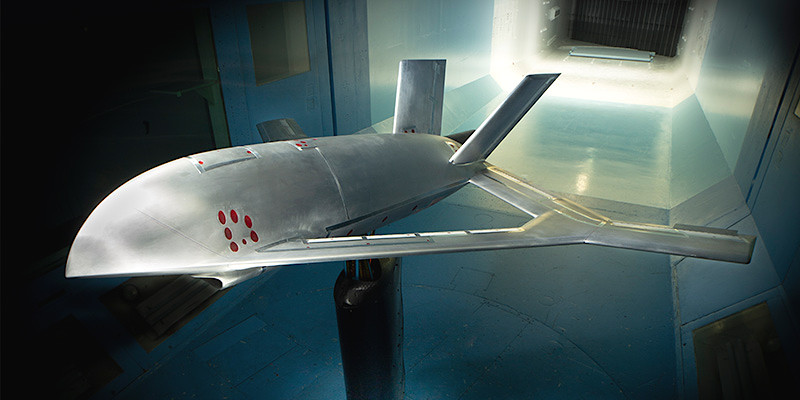

A wind tunnel model showing a more recent evolution of Aurora Flight Sciences’ CRANE X-plane design. Aurora Flight Sciences

The aircraft’s main engine arrangement is not entirely clear. An chin air intake under the forward fuselage together with a single exhaust nozzle at the rear seen in official concept art and on wind tunnel models would seem to point to a plan to power the aircraft with a single jet engine.

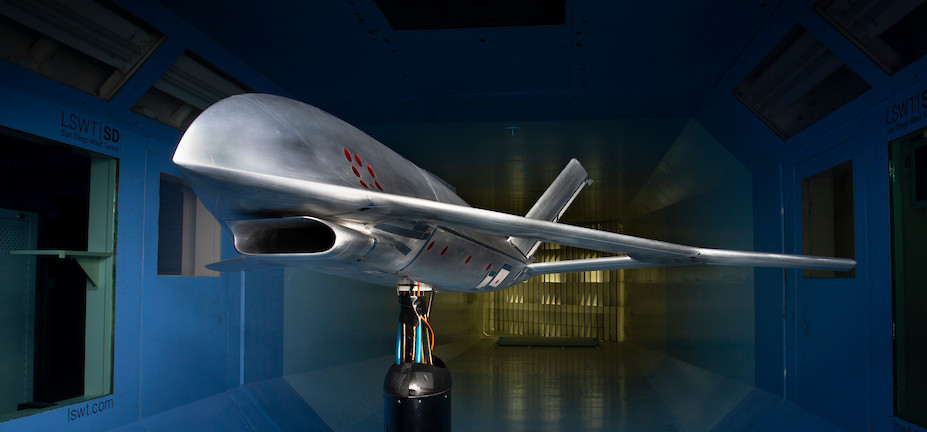

A view of a wind tunnel model that Aurora Flight Sciences has been using as part of the development of its CRANE X-plane showing the air intake under the fuselage. Aurora Flight Sciences

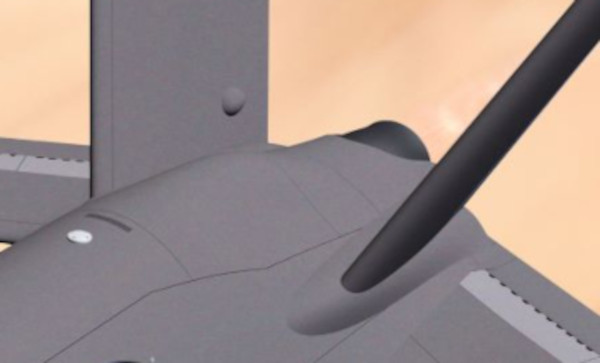

What appears to be a single rear exhaust nozzle is seen in this close-up of a DARPA rendering of Aurora Flight Sciences’ CRANE X-plane design. DARPA

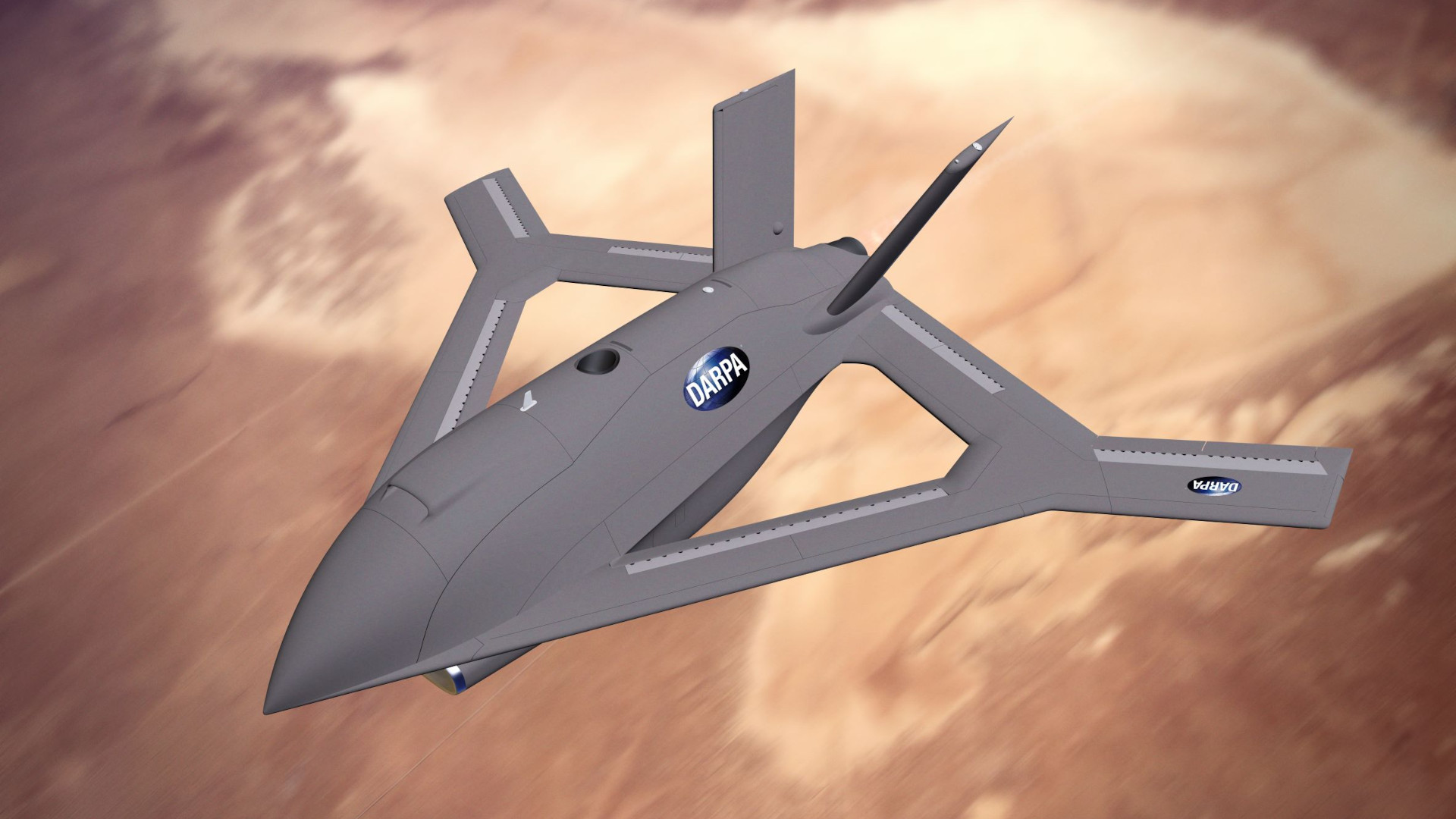

It’s also unclear whether the aircraft’s main propulsion system, or some kind of auxiliary power source, is expected to generate the pressurized air necessary for the AFC nozzle banks to function. Concept art DARPA has released appears to show a separate intake on top of the nose and a smaller exhaust on top of the mid-section of the fuselage that might be tied to the AFC system.

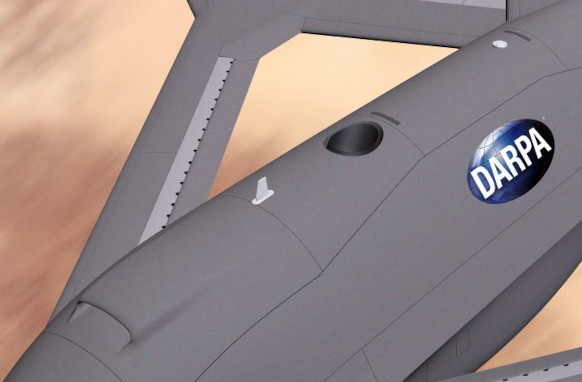

A close-up of what looks to be an intake and associated exhaust on top of the fuselage in DARPA’s rendering of the CRANE X-plane design. DARPA

Interestingly, Aurora’s design “is configured to be a modular testbed featuring replaceable outboard wings and swappable AFC effectors. The modular design allows for testing of not only Aurora’s AFC effectors but also AFC effectors of various other designs,” a company press release issued in December 2022 said. “By expanding testing capabilities beyond Aurora-designed components, the program further advances its goal to provide the confidence needed for future aircraft requirements, both military and commercial, to include AFC-enabled capabilities.”

Aurora has already done significant wind tunnel testing of subscale models with representative AFC components as part of CRANE’s Phase 1. The company, along with Lockheed Martin, was chosen to proceed to that phase of the program in 2021.

“Using a 25% scale model, Aurora conducted tests over four weeks at a wind tunnel facility in San Diego, California. In addition to 11 movable conventional control surfaces, the model featured 14 AFC banks with eight fully independent controllable AFC air supply channels,” according to a press release the company put out in May 2022. “Over 14,000 data points were collected, including 8,860 AFC control power points, forming the foundation for a flight-quality aerodynamic database to enable rapid execution in future program phases.”

Aurora Flight Sciences

If DARPA proceeds into Phase 3 of the CRANE program, Aurora will then build the full 7,000-pound prototype, which the company also says is expected to have a 30-foot wingspan and be able to reach speeds of up to Mach 0.7. Flight testing could begin as early as 2025.

If the CRANE X-plane design proves viable and turns into an actual airworthy aircraft, it could have important ramifications for future aircraft development writ large. The ability to eliminate the need for moving control surfaces could lead to fundamental changes in how any plane might be developed going forward.

Getting rid of traditional control surfaces inherently allows for a design to be more aerodynamic, and therefore fly in a more efficient manner, especially at higher altitudes. An aircraft with an AFC system doesn’t need the various actuators and other components to move things like ailerons and rudders, offering new ways to reduce weight and bulk.

A DARPA briefing slide showing how the designs of traditional control surfaces, at their core, have remained largely unchanged after more than a century of other aviation technology developments. DARPA

A lighter and more streamlined aircraft design using an AFC system might be capable of greater maneuverability. This could be particularly true for uncrewed types that also do not have to worry about the physical limitations of a pilot.

The elimination of so many moving parts also means fewer things that can break, improving safety and reliability. This would do away with various maintenance and logistics requirements, too. It might make a military design more resilient to battle damage and easier to fix, as well.

While all of this could be beneficial for many aircraft type, AFC technology could be especially significant when applied to stealth designs. Designers of stealthy aircraft have to be mindful of any joints or other gaps between exposed surfaces, and try to generally keep them to a minimum, to ensure the radar cross-section remains as low as possible.

As such, traditional control surfaces, which by definition cannot always be flush with the rest of the aircraft’s external shape, are a major and currently inescapable issue. Fly-by-wire designs also keep these surfaces fluttering at all times to keep the stealthy aircraft stable in forward flight. AFC technology holds the promise of being able to change this reality and make it easier to optimize the radar-evading qualities of a stealthy design. Other technologies, like the ability to dynamically warp wing structures to provide flight control, could also help in future stealthy aircraft radar signature control.

B-2s and F-35s in formation behind a KC-135. Tech. Sgt. Dylan Nuckolls/USAF

The CRANE program and Aurora Flight Sciences’ design is of course not the first time AFC technology has been experimented with. U.K.-headquartered BAE Systems, which was another one of the participants in CRANE’s Phase 0, has been very publicly experimenting with various AFC concepts since at least 2010. The most recent of these developments was an AFC-equipped design called MAGMA. Described by BAE as a “large model,” this aircraft actually flew and you can read more about it here.

“Over the past several decades, the active flow control community has made significant advancements that enable the integration of active flow control technologies into advanced aircraft,” Richard Wlezein, the CRANE Program Manager at DARPA, said in a statement included in today’s press release. “We are confident about completing the design and flight test of a demonstration aircraft with AFC as the primary design consideration.”

No matter what happens, DARPA and Aurora both see a future for this design beyond the CRANE program.

“With a modular wing section and modular AFC effectors, the CRANE X-plane has the potential to live on as a national test asset long after the CRANE program has concluded,” Wlezein’s statement added.

“By expanding testing capabilities beyond Aurora-designed components, the program further advances its goal to provide the confidence needed for future aircraft requirements, both military and commercial, to include AFC-enabled capabilities,” Aurora’s press release in December 2022 said, referring to its aforementioned modular testbed design.

“Leveraging Boeing’s targeted investments in active flow control, our advancements on the CRANE program aim to further validate the technology’s potential benefits to improve efficiency and performance for both commercial and military aircraft,” Laurette Lahey, Senior Director, Boeing Research and Technology, Flight & Vehicle Technology, said in another statement last year.

All told, it will be very interesting to see how the CRANE program proceeds now and whether it ultimately leads to the construction of a potentially revolutionary X-plane.
