USS Desert Ship Sits In A Sea Of Sand And Launched The Navy To The Forefront Of Missile Tech

This unique and historic facility has played an essential role in developing the U.S. Navy’s missile technology since the dawn of the Cold War.

byTyler Rogoway|
U.S. Homeland photo

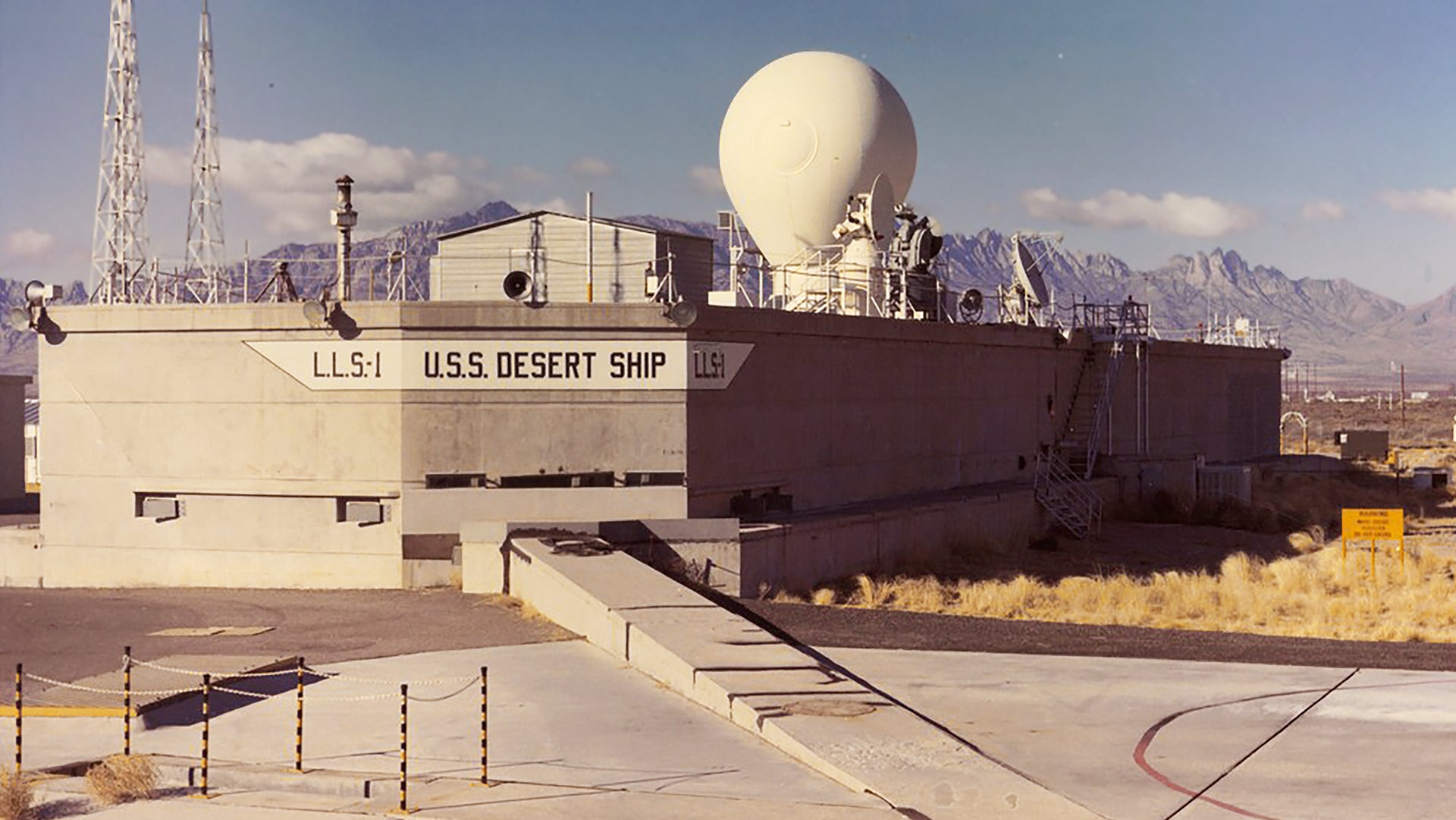

Among the maelstrom of operational and abandoned test sites that speckle the desolate desert on the southern end of White Sands Missile Range sits a peculiar facility that has quietly helped develop the Navy's most important missile, gun, and fire control technologies for over six decades. The installation with a U.S. Navy ship's name and culture, but located thousands of miles away from where a ship should be, has put weapon systems that would change warfare forever through their paces. This place is USS Desert Ship, also designated LLS-1, for 'Land Locked Ship' number one. It is also known by the adjacent launch site that predates it, Launch Center 35 (LC-35).

LLS-1 is yet another exotic installation that makes up a constellation full of seemingly countless facilities arrayed across the United States that develop, test, and evaluate America's future combat technologies. LLS-1 is half ship-like concrete bunker and half launch pad. Built in the mid-1950s at the dawn of the guided missile age, its blockhouse was designed to be stuffed with combat systems and to emulate the conditions found on an operational U.S. Navy fighting ship. Its upper deck was fortified to accommodate similar sensors and communications gear found on its seagoing counterparts as well as additional gear needed to support testing efforts and to interface with the highly networked and surveilled White Sands Missile Range complex which extends many miles to the North.

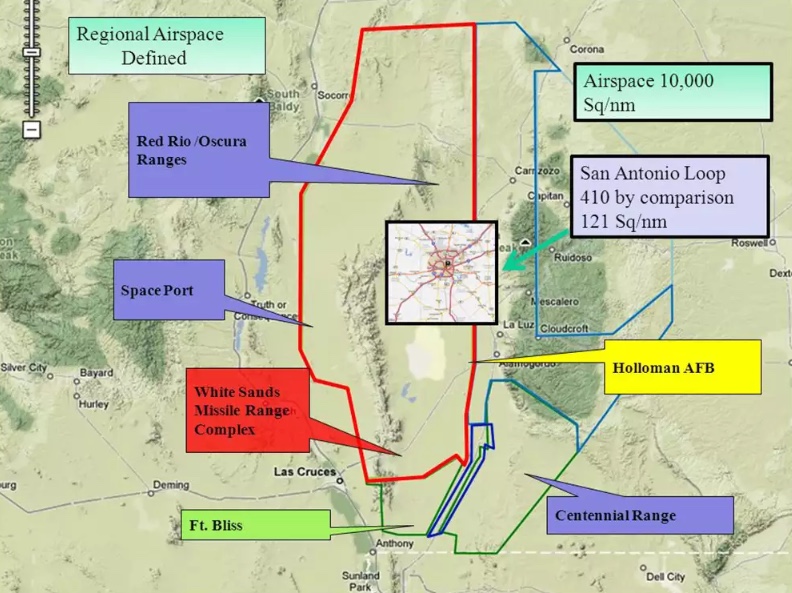

The WSMR Complex area (marked in red) is about 8 miles to the west of USS Desert Ship., WSMR

The facility was originally built to develop and test the massive and ultra-complex and optionally nuclear-armed RIM-8 Talos shipboard surface-to-air missile system. When I say complex and massive it is not for hyperbole's sake. Read all about this crazy Cold War weapon whose combined magazine and launch system was more akin to a highly armored assembly line at sea than anything else in this recent feature of mine

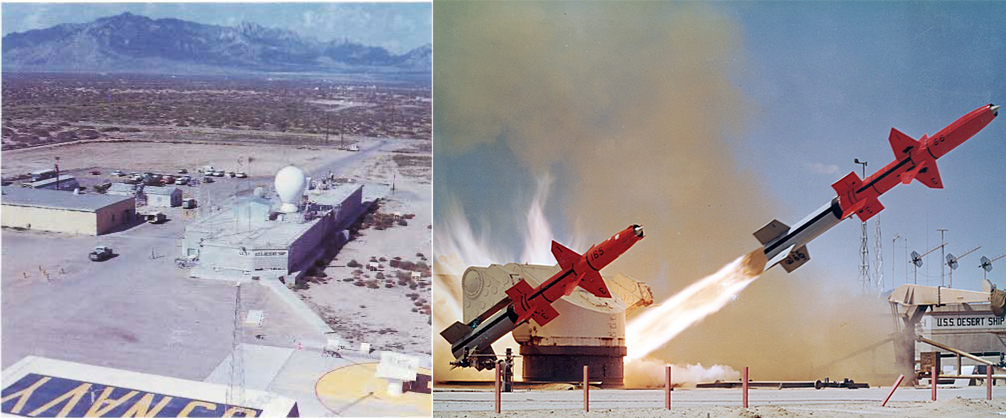

The facility from the air, with what looks like a box launcher installed for Sea Sparrow missile tests. Also, note the large trapezoidal building with GO NAVY on the top is the Talon assembly-magazine area just like the ones found on ships (Left image). Talos tests had to very lively affairs back in the 1950s (Right)!, USN

Eventually, the 'Three Ts' of the Navy's SAM ecosystem during the first couple of decade of the Cold War—Terrier, Tartar, and Talos—would be tested at the facility, with all three launchers, including Talos' missile assembly magazine, being installed in front and just to the east of USS Desert Ship. Gun systems were also tested at the site. A 73,000 pound, Mk39 five-inch gun was used primarily. Tests included the evaluation of rocket-propelled shells back in the 1990s before the gun was removed in 2000.

Before any of this took place, back in 1947, a pad adjacent to where USS Desert Ship sits to today was constructed to launch Aerobee sounding rockets into the upper atmosphere. These rockets gathered important information on atmospheric conditions and cosmic radiation. Two big launch towers were used to send the Aerobees on their way. The name LC-35 comes from this precursor installation to USS Desert Ship.

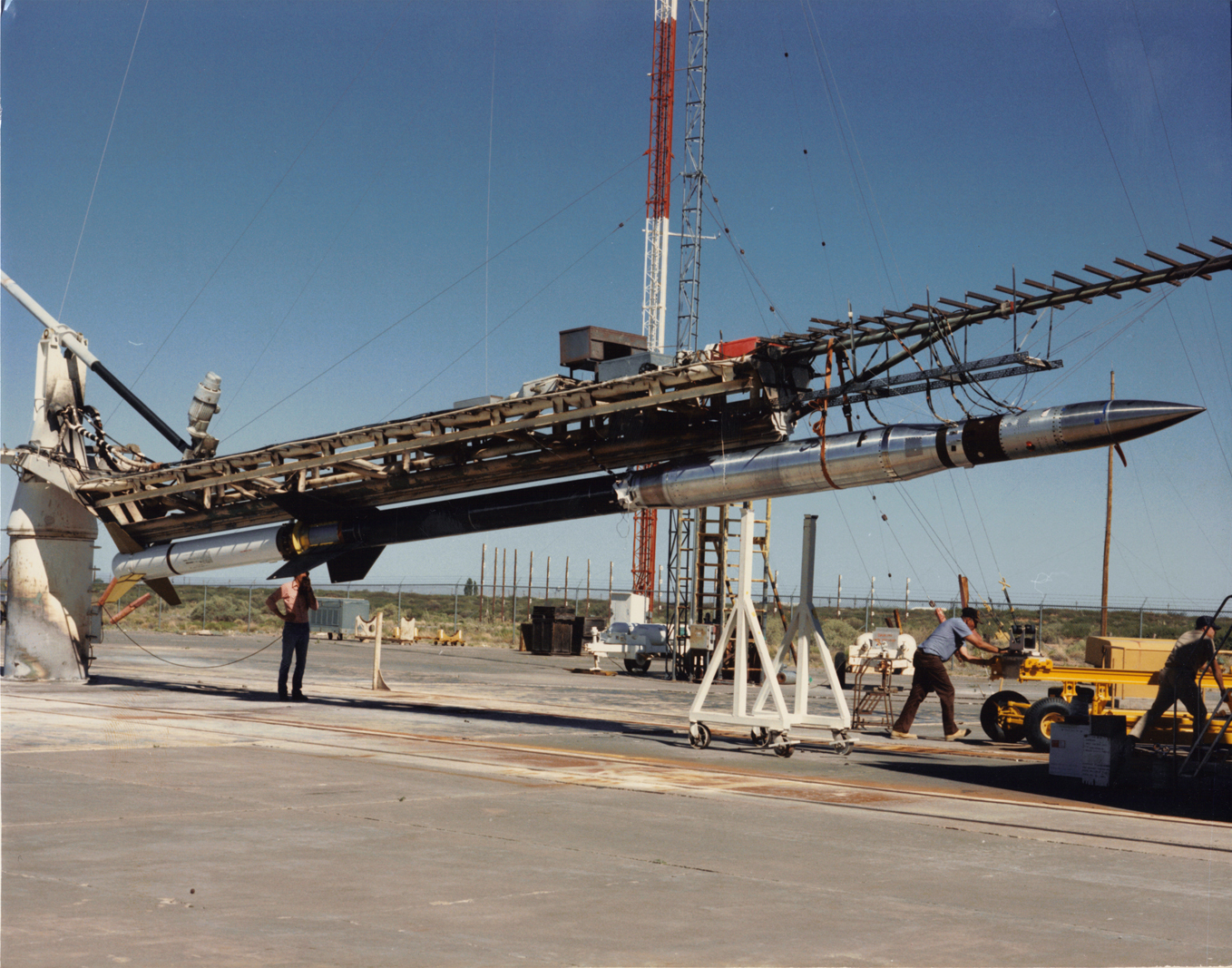

The large tilting launch rails used for Aerobee rockets at LC-35. These rockets could travel dozens of miles into the upper reaches of Earth's atmosphere. , UC Boulder

By the mid-1970s, the facility began to slowly migrate away from primarily supporting tests of the 'Three Ts' to the doing so for the Standard Missile series and the Aegis Combat System. A large portion of Aegis developmental testing was executed at the site leading up to and after its certification in 1983. Since then, USS Desert Ship has continued to support the development of the latest Navy missile technologies. White Sands Missile Range officially describes the site's activities as such:

Launch Complex 35, known as the USS Desert Ship LLS-1, is primarily used for live fire testing the Navy´s STANDARD Missile (SM). The Navy is currently testing SM and Evolved Seasparrow Missile (ESSM) at this site. All versions of STANDARD Missile have been tested at the Desert Ship including SM-2 Block II (Terrier, Tartar, AEGIS, and Vertical Launch AEGIS), SM-2 Block III/IIIA/IIIB (Terrier, Tartar, and Vertical Launch AEGIS), and SM-2 Block IV (Extended Range Vertical Launch AEGIS). Testing of SM-2 Blk IVA is in process. Other Navy systems that have been tested here include Sea Lance, NATO Seasparrow Missile (NSSM), and Vertical Launch ASROC (VLA). The Desert Ship functionally duplicates the fire control requirements of a surface ship. Dedicated telemetry, target monitoring, and data extraction and reduction systems Launch Complex 35 “The Desert Ship” complement the extensive instrumentation services provided by the Range...

Launch Complex 35 is a Research Rocket facility that includes a block-house, launch control equipment, and a payload assembly building. Current use of this facility is for NASA payload buildup, telemetry pre-launch and launch support, and uplink control of rocket payloads.

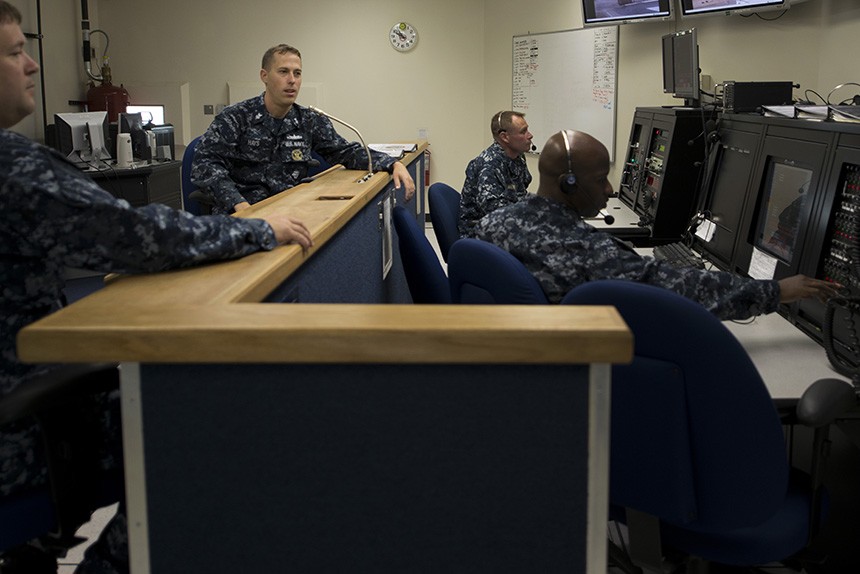

Some areas inside LLS-1 look a bit more like a NASA control center than the inside of a fighting ship, while others still supposedly appear similar to what you would see in a combat information center aboard a ship. And even though the facility is over 60 years old, it is still uniquely positioned to test the hardware that will end up on America's front-line fighting ships in the not so distant future., USN

More recently, in 2016, LLS-1 executed a highly publicized cooperative engagement testin which an F-35 provided targeting information to an SM-6. The facility continues to be an important part of moving improved versions of the hugely versatile SM-6 that feature new capabilities into an operational state, but gone are the eclectic turreted launchers of the past.

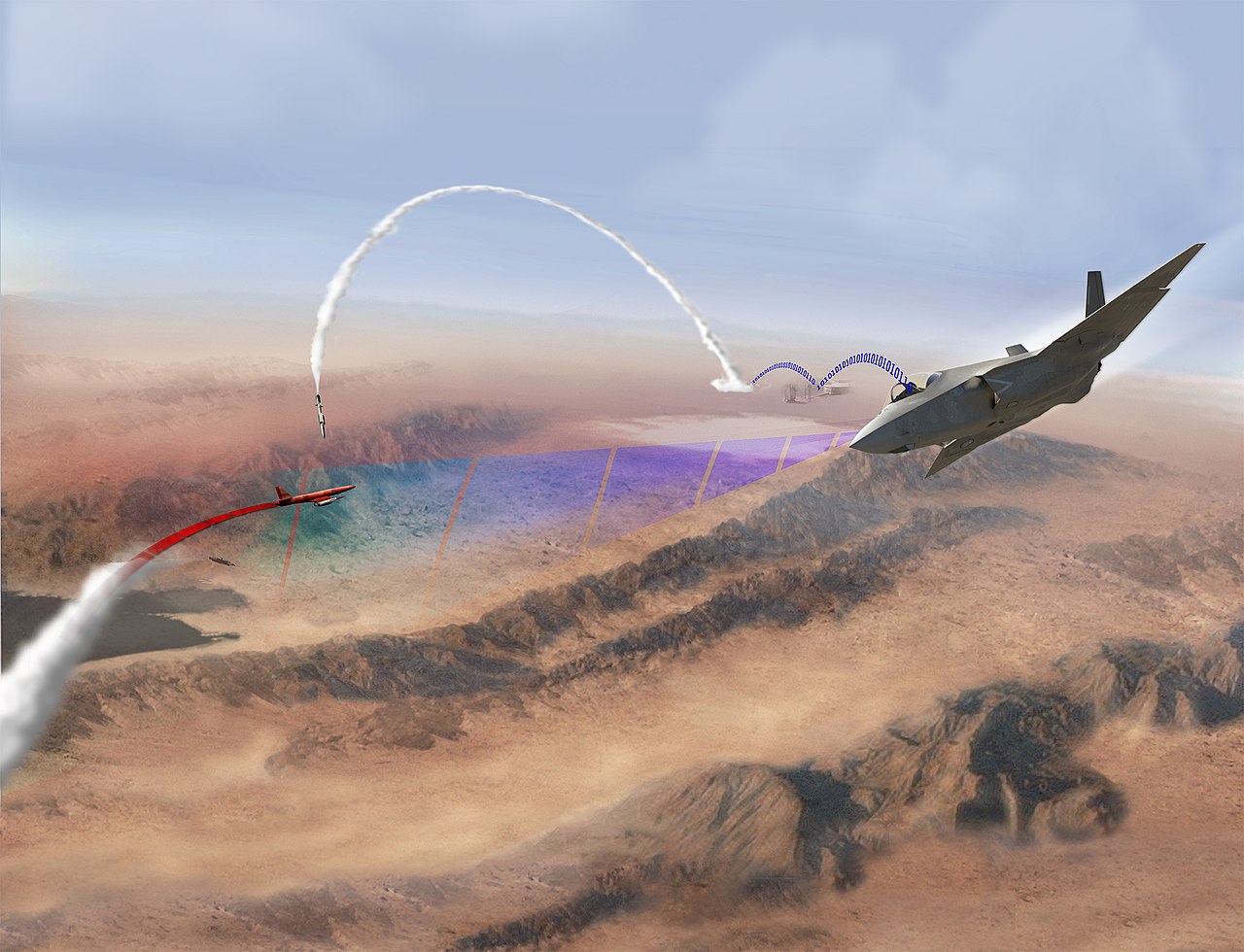

A basic concept drawing of the cooperative engagement test over White Sands Missile Range in which an F-35 provided targeting data for a SM-6 fired from USS Desert Ship. , USN

Today, an upright Mark 41 vertical launch system, similar to those used at Aegis Ashore sites overseas, provides the launch interface for missile tests. A relatively new site handles the launches remotely from USS Desert Ship.

Video thumbnail
Video thumbnail
Video thumbnail

There is also a weapons assembly facility across the road from USS Desert Ship that provides munitions to be tested. It was built to make tests more seamless as transporting experimental weapons over long distances was deemed problematic, especially while trying to power through important trials. But by and large, there isn't anything but a handful of other test sites within about 10 miles of USS Desert Ship, with the closest population center being the tiny town of White Sands that largely exists to support the missile range and its workforce.


Even though only roughly 30 sailors work at the site, along with a number of contractors that can drastically increase or decrease depending on the testing schedule, it seems that some of those who have called the facility home actually enjoyed their time there.

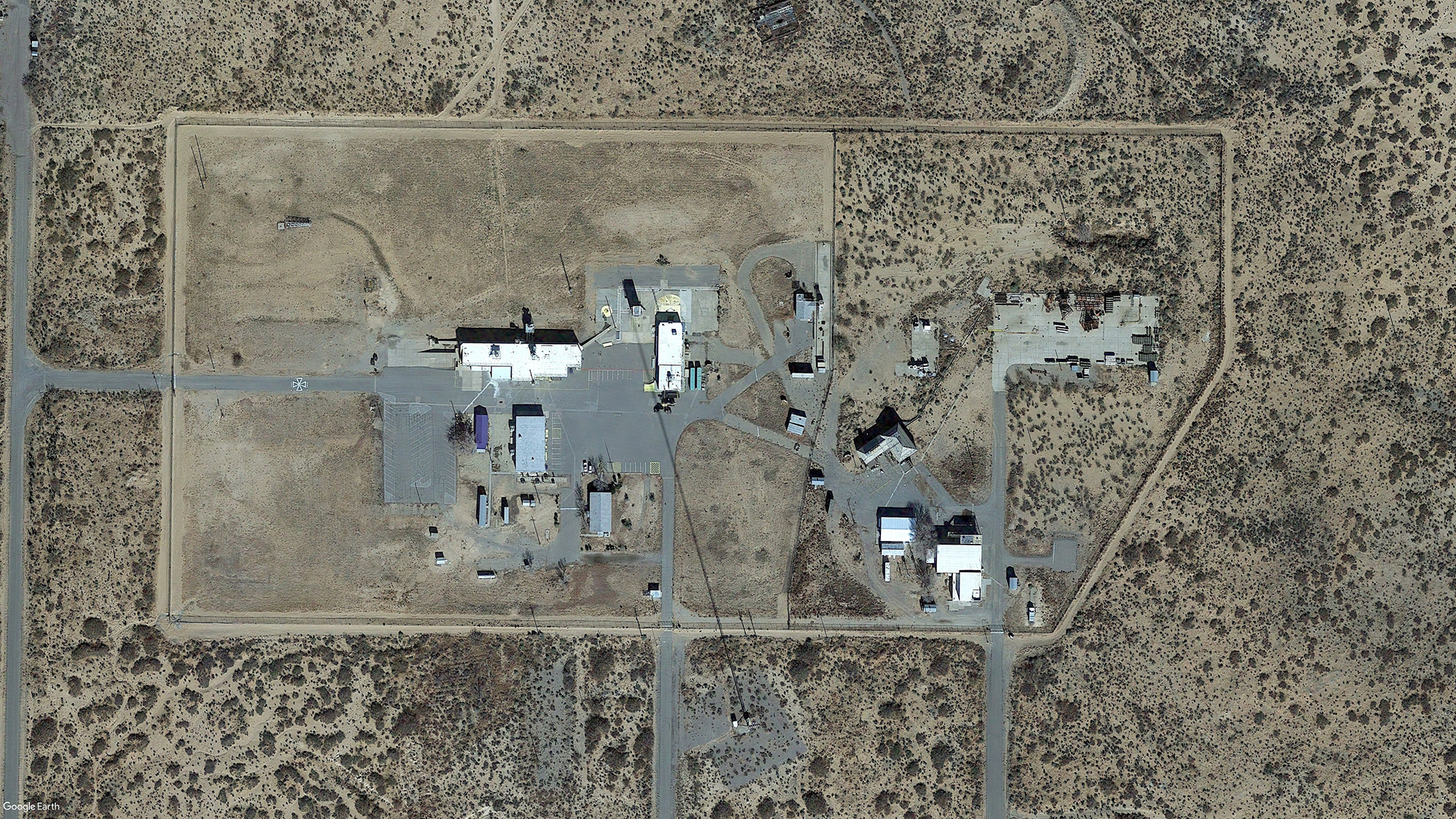

USS Desert Ship and LC-35., Google Earth
A newer remote facility located roughly two and a half miles north of USS Desert Ship is equipped with the vertical launch systems needed to carry out missile tests in conjunction to USS Desert Ship for the Navy., Google Earth

There are a handful of other ship-like structures built on land to help in naval combat systems research and development which we will discuss in a future article, but none are as remote or offer live fire opportunities like USS Desert Ship.

It's yet another oddity of the sprawling White Sands Missile Range—a place packed with history along with a sprinkling of mystery.
